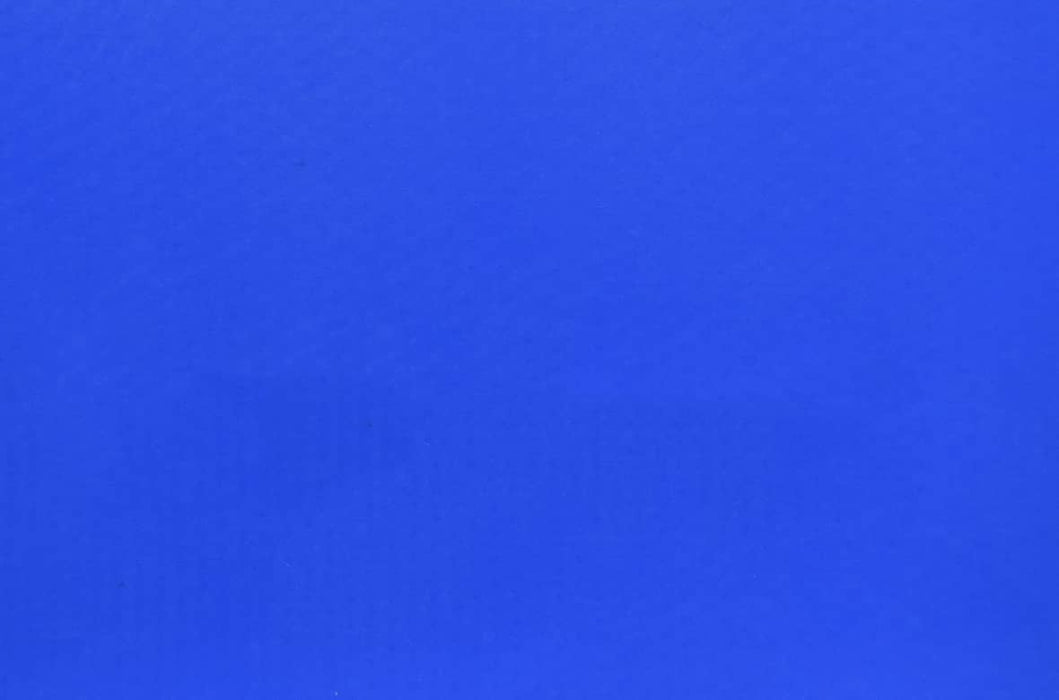

132B
2 DNFP 05/LB2 IM M
international designation:
Construction:
Top Cover: N/A (0.00 mm) 0.0000 in. — Matte — 87 Shore A
Bottom Cover: N/A (0.00 mm) 0.0000 in. — Impregnated
Number of Plies: No
Overall Gauge: (1.50 mm) 0.0590 in.
Unit Weight: 0.3200 lbs/PIW
Maximum Width: 118 in.
Temperature Range: High 176 °F — Low 14 °F
Pulley Diameter, Minimum:
Normal Flex: (0.00 mm) 0.0000 in.
Back Flex: (0.00 mm) 0.0000 in.
Belt Strength:
Pull for 1% Elongation: (14 N/mm) 80 lbs/sq. in.
Splice Instructions:
Foil Splice Process: No
Press Temperature (°F): 0 °F
Press Pressure (psi): 0 lbs/sq. in.
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other:
Cross Rigid: No
Impression Top: No
Oil Resistant: Yes
Fire Resistant: Yes
FDA Approved: No
Suggested Fasteners: (not specified)
