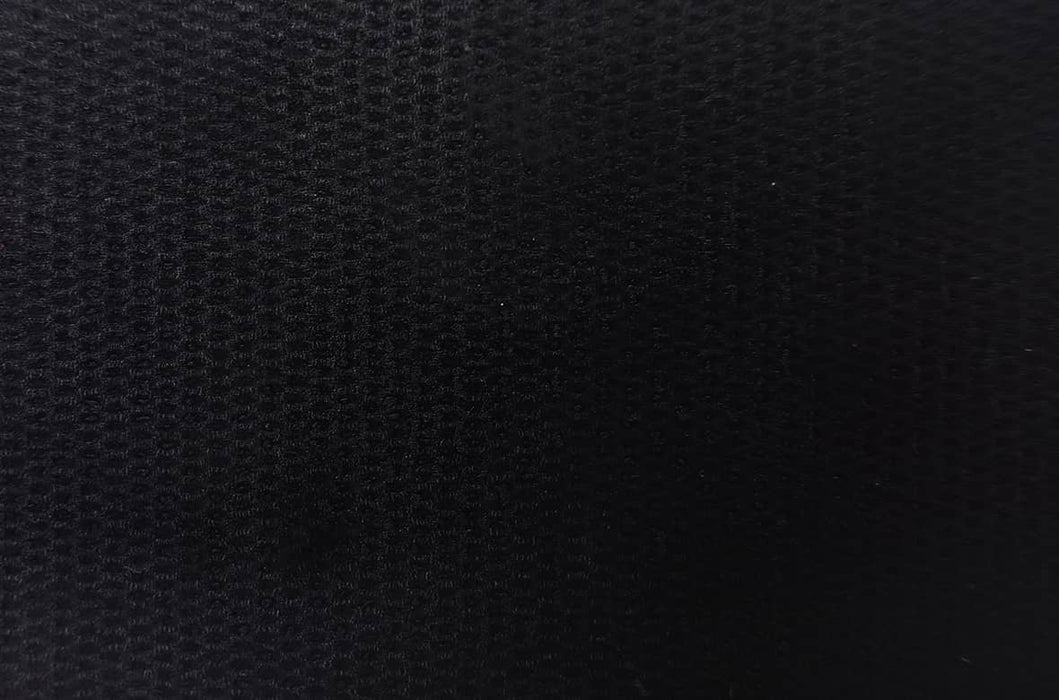

2 Ply 160 1/16in x 1/64in Grape Belt
2 Ply 160 1/16in x 1/64in Grape Belt
International designation:
Construction:
- Top Cover Compound: Black SBR
- Top Cover Color: Black
- Top Cover Thickness: 1.59 mm (1/16 in)
- Top Cover Description: Smooth
- Bottom Cover Compound: Black SBR
- Bottom Cover Thickness: 0.40 mm (1/64 in)
- Bottom Cover Description: Smooth
- Number of Plies: 2
- Overall Gauge: 4.37 mm (11/64 in)
- Unit Weight: 0.0900 lbs/PIW
- Carcass Type: Poly/Nylon
- Temperature Range: High 225 °F / Low -25 °F
Pulley Diameter, Minimum:
- Head @ 80 - 100% Tension: 6.00 in.
- Head @ 60 - 79% Tension: 6.00 in.
- Head @ 59% Tension or Below: 6.00 in.
- Tail: 6.00 in.
Belt Strength:
- Tension Rating (PIW): 160 PIW
Splice Instructions:
- Splice Step Size: 8.00 in.
- Splice Process: Step Hot
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other:
- Static Conducting: No
- Cross Rigid: No
- High Heat: No
- Impression Top: No
- Oil Resistant: No
- Fire Resistant: No
- FDA Approved: No
Suggested Fasteners:
- Flexco Plate/Rivet: N/A
- Flexco Hinged: N/A
- Alligator Staple: #125
- Clipper Lace: N/A
- Alligator Lace: N/A
