NW 150 BLACK PVC EMB x Brushed FR
NW 150 BLACK PVC EMB x Brushed FR
international designation:
Construction:

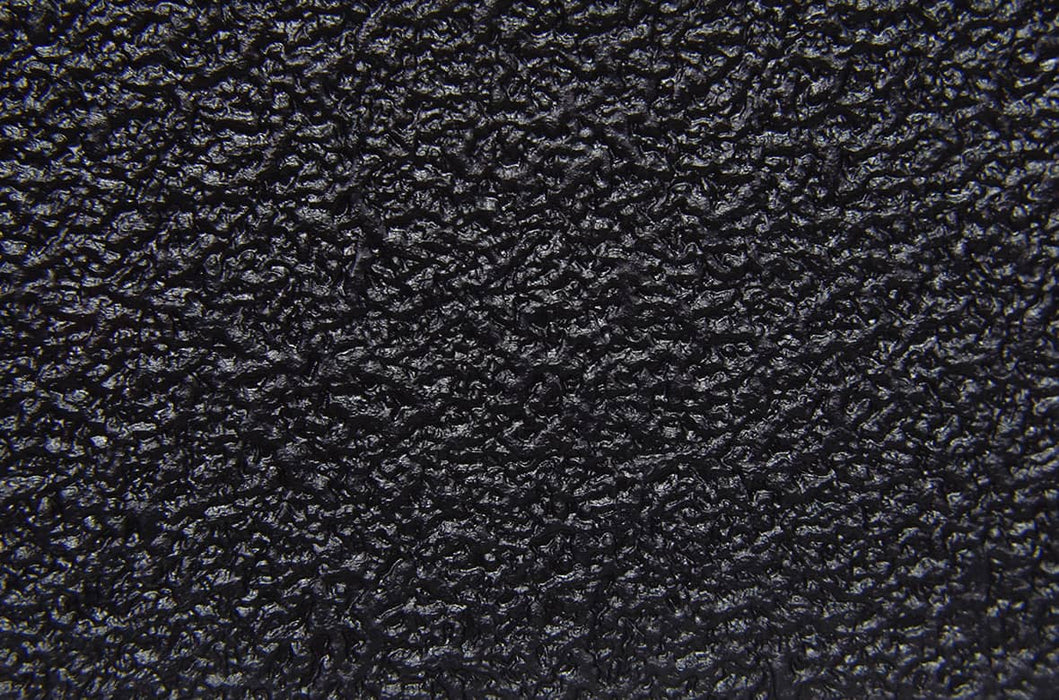

- Top Cover: Black PVC (0.90 mm) 0.0354 in. Embossed, Shore 65A
- Bottom Cover: Polyester Fleece (0.00 mm) 0.0000 in. Impregnated Fleece, N/A
- Number of Plies: 1
- Overall Gauge: (3.60 mm) 0.1417 in.
- Unit Weight: 0.0529 lbs/PIW
- Maximum Width: 72 in.
- Temperature Range: High 180 °F, Low 20 °F
Pulley Diameter, Minimum:
- Normal Flex: (50.80 mm) 2.0000 in.
- Back Flex: (88.90 mm) 3.5000 in.
Belt Strength:
- Pull for 1% Elongation: (26 N/mm) 150 lbs/sq. in.
Splice Instructions:
- Foil Splice Process: Yes
- Splice Method: Finger
- Press Temperature: 356 °F
- Press Pressure: 19 lbs/sq. in.
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
