NW 250 Black PVC SB x F AS FR
NW 250 Black PVC SB x F AS FR. International designation:

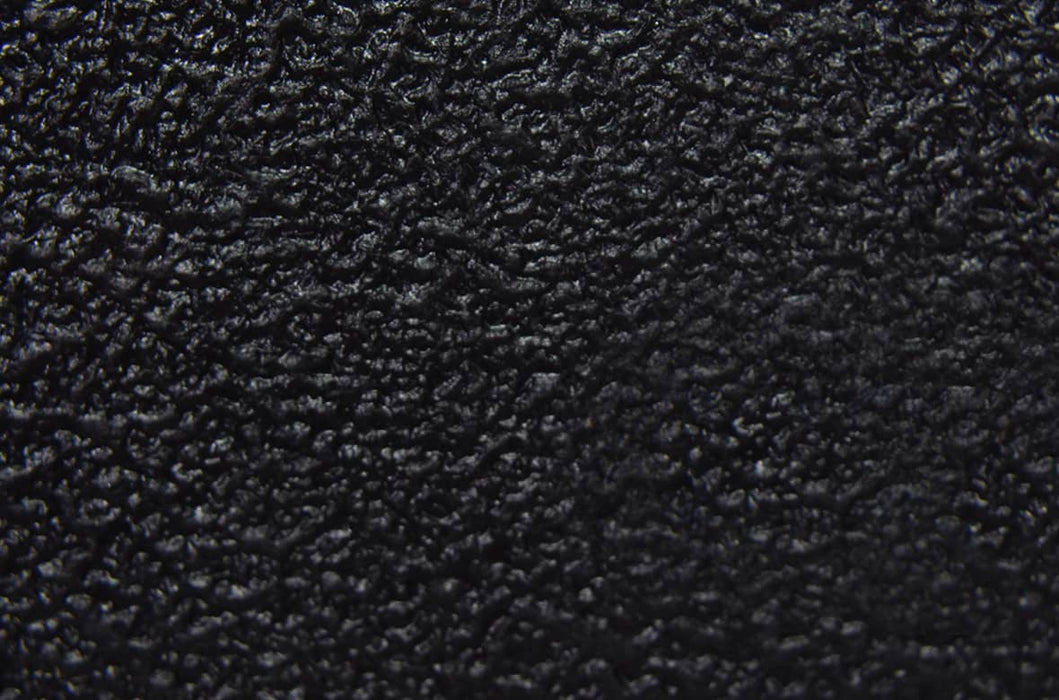

Construction: Compound Top Cover: Black PVC; Top Cover Color: Black; Top Cover Description: Sand Blast; Compound Bottom Cover: PVC Impregnated Polyester; Bottom Cover Description: Impregnated Fleece; Number of Plies: 1 (4.30 mm) 5/32 in.; Unit Weight: 0.0758 lbs/PIW; Carcass Type: Non-Woven Polyester; Compound: Black PVC; Temperature Range: High 225 °F, Low -10 °F.
Pulley Diameter, Minimum: 3.00 in.
Belt Strength: Tension Rating (PIW): 250 PIW.
Splice Instructions: Splice Step / Splice Finger: No / Yes.
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other: Static Conducting: No; Cross Rigid: No; High Heat: No; Impression Top: No; Oil Resistant: No; Fire Resistant: Yes; FDA Approved: No.
Suggested Fasteners: Flexco Plate/Rivet: N/A; Flexco Hinged: N/A; Alligator Staple: N/A; Clipper Lace: #2; Alligator Lace: N/A.
