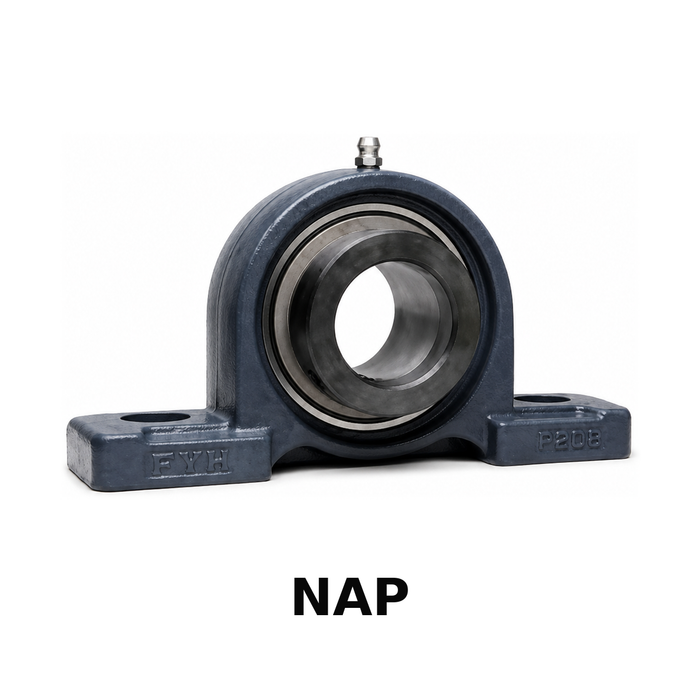

FYH NAPF205 25MM Normal Duty Concentric Lock Pressed Steel

NAPF205 - 25MM ND LC PRESSED STEEL

by FYH
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

General

Product CategoryMounted Bearing
Ambient TemperatureStandard (-20 to 100 C) (-4 to 212 F)

Housing

Housing TypePillow Block
Housing SizePF205
Housing MaterialPressed Steel
Bolt Centers4-1/8" - 105mm

Bearing Insert

Bore Size - ID Diameter25MM
Bearing Insert TypeNA
Bearing Insert Size205
Bearing Insert MaterialCarbon Steel
Bore TypeCylindrical
Locking SystemEccentric Collar

Request a quote

Housing type: Pillow Block

Housing size: PF205

Bolt Centers: 4-1/8" - 105mm

Housing Material: Pressed Steel

Bearing Insert Type: NA

Bearing Insert Material: Carbon Steel

Bore Size: 25MM

Bore Type: Cylindrical

Bearing Insert Size: 205

Locking system: Eccentric Collar

Ambient Temperature: Standard (-20 to 100 C) (-4 to 212 F)

Seal Type:
