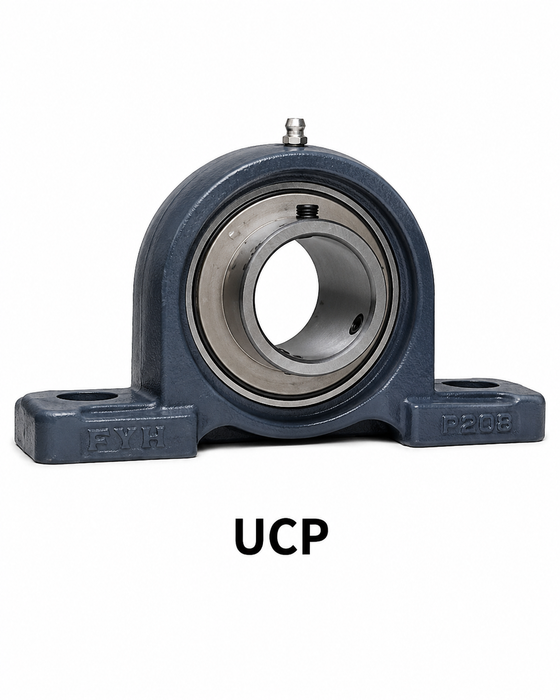

FYH PX20NP Medium Duty Pillow Block Nickel Plated

PX20NP - MEDIUM DUTY PB NICKEL PLATED

by FYH
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

General

Product CategoryMounted Bearing
Ambient TemperatureStandard (-20 to 100 C) (-4 to 212 F)

Housing

Housing TypePillow Block
Housing SizePX20
Housing MaterialCast Iron

Bearing Insert

Bore Size - ID Diameter100MM
Bearing Insert TypeUC
Bearing Insert Size20
Bearing Insert MaterialCarbon Steel
Bore TypeCylindrical
Locking SystemSet Screw

Request a quote

Housing type: Pillow Block

Housing size: PX20

Bolt Centers:

Housing Material: Cast Iron

Bearing Insert Type: UC

Bearing Insert Material: Carbon Steel

Bore Size: 100MM

Bore Type: Cylindrical

Bearing Insert Size: 20

Locking system: Set Screw

Ambient Temperature: Standard (-20 to 100 C) (-4 to 212 F)

Seal Type:
