FYH SBPTH20590 25 MM Light Duty Set Screw Take-up Unit &

SBP206KG5 - 30MM ND SS UNIT

by FYH
Save 20% Save 20%
$27.94
$27.94 - $27.94
$27.94
$22.27
$22.27 - $22.27
$22.27

General

Product CategoryMounted Bearing
Ambient TemperatureStandard (-20 to 100 C) (-4 to 212 F)

Housing

Housing TypeNarrow Inner Ring Pillow Block
Housing SizeP206
Housing MaterialCast Iron
Bolt Centers4-3/4" - 121mm

Bearing Insert

Bore Size - ID Diameter30MM

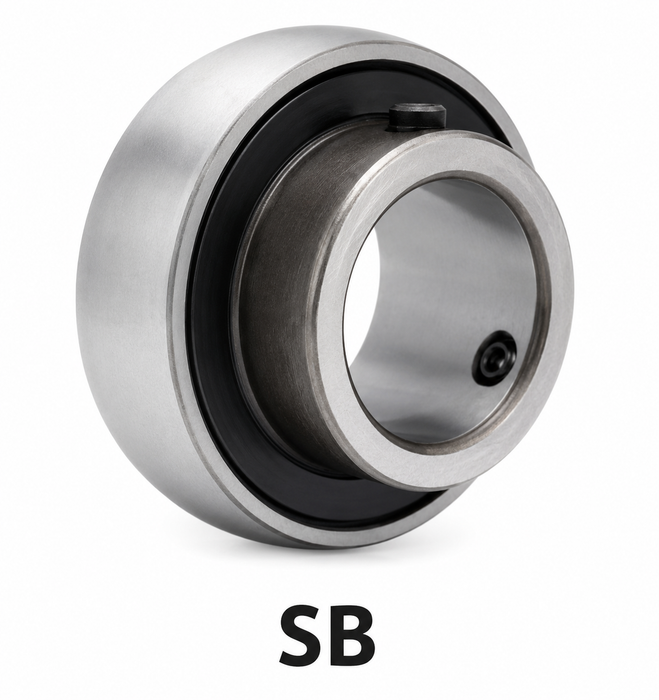

Bearing Insert TypeSB
Bearing Insert Size206
Bearing Insert MaterialCarbon Steel
Bore TypeCylindrical
Locking SystemSet Screw

Housing type: Narrow Inner Ring Pillow Block

Housing size: P206

Bolt Centers: 4-3/4" - 121mm

Housing Material: Cast Iron

Bearing Insert Type: SB

Bearing Insert Material: Carbon Steel

Bore Size: 30MM

Bore Type: Cylindrical

Bearing Insert Size: 206

Locking system: Set Screw

Ambient Temperature: Standard (-20 to 100 C) (-4 to 212 F)

Seal Type:
