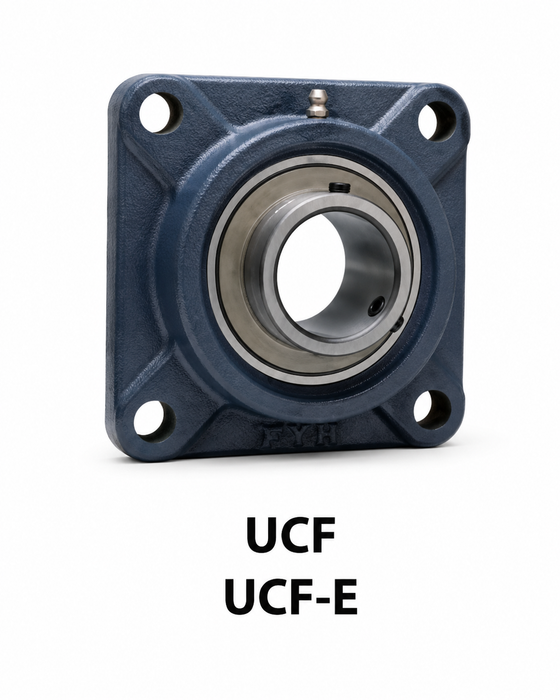

FYH UCF206JD1K2 30MM 4-Bolt 2-Bolt Flange *high-temp* with

UCF206JD1K2 - 30MM 4B FL *HIGH-TEMP* W/

by FYH
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

General

Product CategoryMounted Bearing
Ambient TemperatureHeat Resistant (-40 to 180 C) (-40 to 356 F)

Housing

Housing Type4-Bolt Flange
Housing SizeF206
Housing MaterialCast Iron
Bolt Centers3-17/64" - 83mm

Bearing Insert

Bearing Insert TypeUC
Bearing Insert Size206
Bearing Insert MaterialCarbon Steel
Bore Size - ID Diameter30MM
Bore TypeCylindrical
Locking SystemSet Screw

Request a quote

Housing type: 4-Bolt Flange

Housing size: F206

Bolt Centers: 3-17/64" - 83mm

Housing Material: Cast Iron

Bearing Insert Type: UC

Bearing Insert Material: Carbon Steel

Bore Size: 30MM

Bore Type: Cylindrical

Bearing Insert Size: 206

Locking system: Set Screw

Ambient Temperature: Heat Resistant (-40 to 180 C) (-40 to 356 F)

Seal Type:
