FYH SAPFL204FP7 mounted bearing unit

SAPFL204FP7 - 20MM LD LC * 2-BOLT PRESSED

by FYH
Save 20% Save 20%
$16.59
$16.59 - $16.59
$16.59
$13.22
$13.22 - $13.22
$13.22

General

Product CategoryMounted Bearing
Ambient TemperatureStandard (-20 to 100 C) (-4 to 212 F)

Housing

Housing TypeNarrow Inner Ring 2-Bolt Flange
Housing SizePFL204
Housing MaterialPressed Steel
Bolt Centers∅2-13/16" - 71.5mm

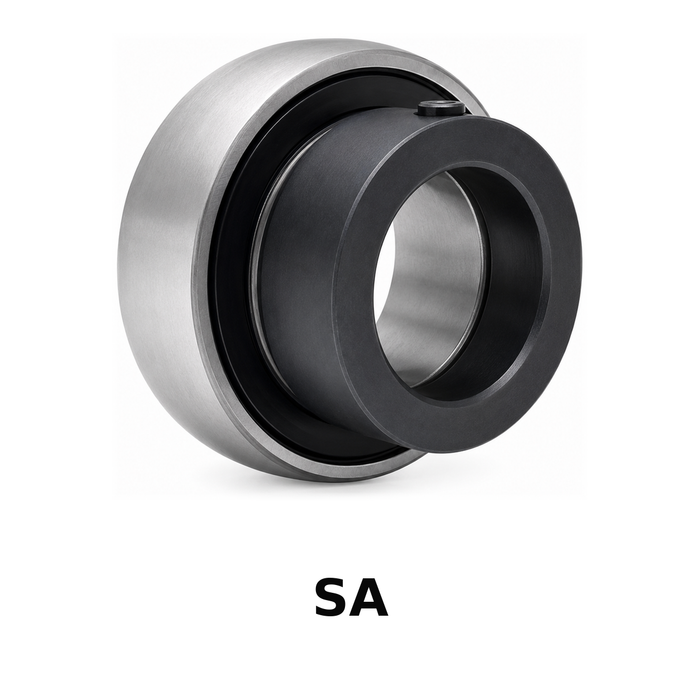

Bearing Insert

Bearing Insert TypeSA
Bearing Insert Size204
Bearing Insert MaterialCarbon Steel
Bore Size - ID Diameter20MM
Bore TypeCylindrical
Locking SystemEccentric Collar

Housing type: Narrow Inner Ring 2-Bolt Flange

Housing size: PFL204

Bolt Centers: ∅2-13/16" - 71.5mm

Housing Material: Pressed Steel

Bearing Insert Type: SA

Bearing Insert Material: Carbon Steel

Bore Size: 20MM

Bore Type: Cylindrical

Bearing Insert Size: 204

Locking system: Eccentric Collar

Ambient Temperature: Standard (-20 to 100 C) (-4 to 212 F)

Seal Type:
