FYH SAPFL206FP7 mounted bearing unit

SAPFL206FP7 - 30MM LD LC *2-BOLT PRESSED

by FYH
Save 20% Save 20%
$23.26
$23.26 - $23.26
$23.26
$18.54
$18.54 - $18.54
$18.54

General

Product CategoryMounted Bearing
Ambient TemperatureStandard (-20 to 100 C) (-4 to 212 F)

Housing

Housing TypeNarrow Inner Ring 2-Bolt Flange
Housing SizePFL206
Housing MaterialPressed Steel
Bolt Centers∅3-9/16" - 90.5mm

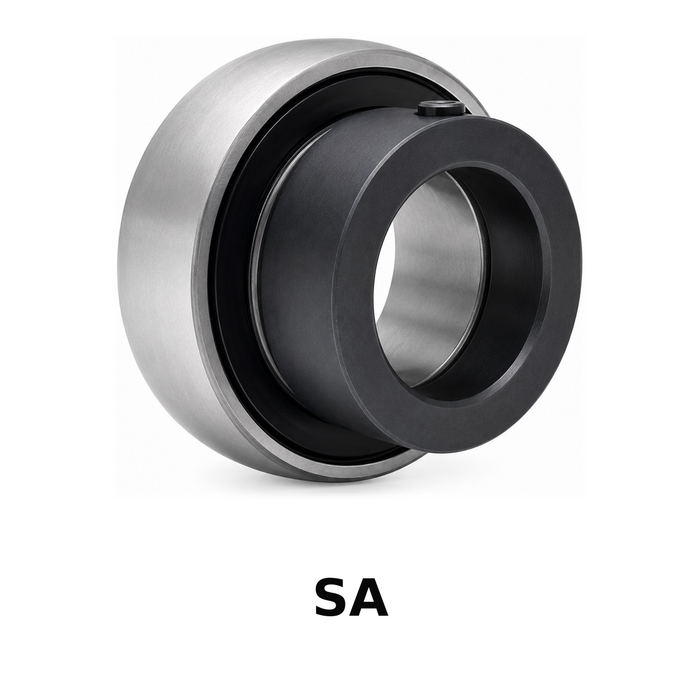

Bearing Insert

Bearing Insert TypeSA
Bearing Insert Size206
Bearing Insert MaterialCarbon Steel
Bore Size - ID Diameter30MM
Bore TypeCylindrical
Locking SystemEccentric Collar

Housing type: Narrow Inner Ring 2-Bolt Flange

Housing size: PFL206

Bolt Centers: ∅3-9/16" - 90.5mm

Housing Material: Pressed Steel

Bearing Insert Type: SA

Bearing Insert Material: Carbon Steel

Bore Size: 30MM

Bore Type: Cylindrical

Bearing Insert Size: 206

Locking system: Eccentric Collar

Ambient Temperature: Standard (-20 to 100 C) (-4 to 212 F)

Seal Type:
