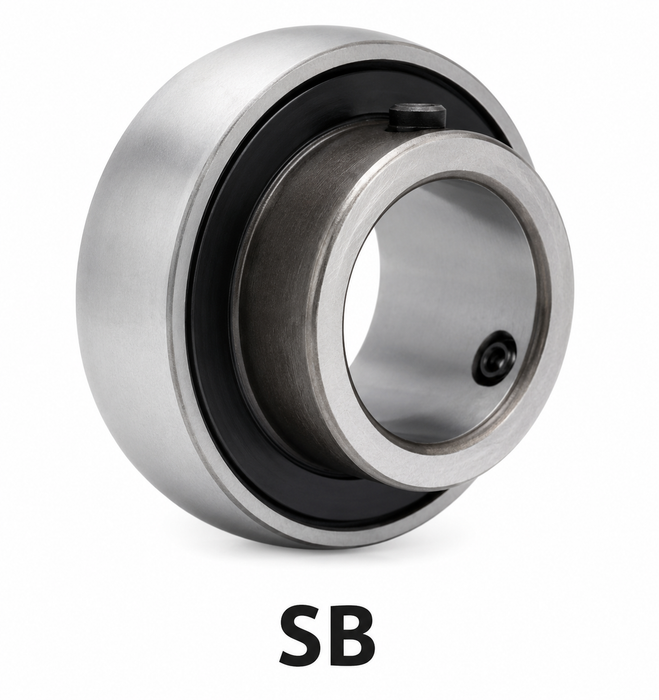

FYH SBFBU20516KP8G5 1in Normal Duty Set Screw 3 Bolt Inseal Master

SBF20720PLDBK114 - 1 1/4 PLW CLOSED COVER + BACK

by FYH
Save 20% Save 20%
$77.84
$77.84 - $77.84
$77.84
$62.04
$62.04 - $62.04
$62.04

General

Product CategoryMounted Bearing
Ambient TemperatureStandard (-20 to 100 C) (-4 to 212 F)

Housing

Housing TypeNarrow Inner Ring Flange
Housing SizeF207
Housing MaterialWhite Thermoplastic
Bolt Centers3-5/8" - 92mm

Bearing Insert

Bearing Insert TypeSB
Bearing Insert Size207-20
Bearing Insert MaterialCarbon Steel
Bore Size - ID Diameter1-1/4"
Bore TypeCylindrical
Locking SystemSet Screw

Housing type: Narrow Inner Ring Flange

Housing size: F207

Bolt Centers: 3-5/8" - 92mm

Housing Material: White Thermoplastic

Bearing Insert Type: SB

Bearing Insert Material: Carbon Steel

Bore Size: 1-1/4"

Bore Type: Cylindrical

Bearing Insert Size: 207-20

Locking system: Set Screw

Ambient Temperature: Standard (-20 to 100 C) (-4 to 212 F)

Seal Type:
