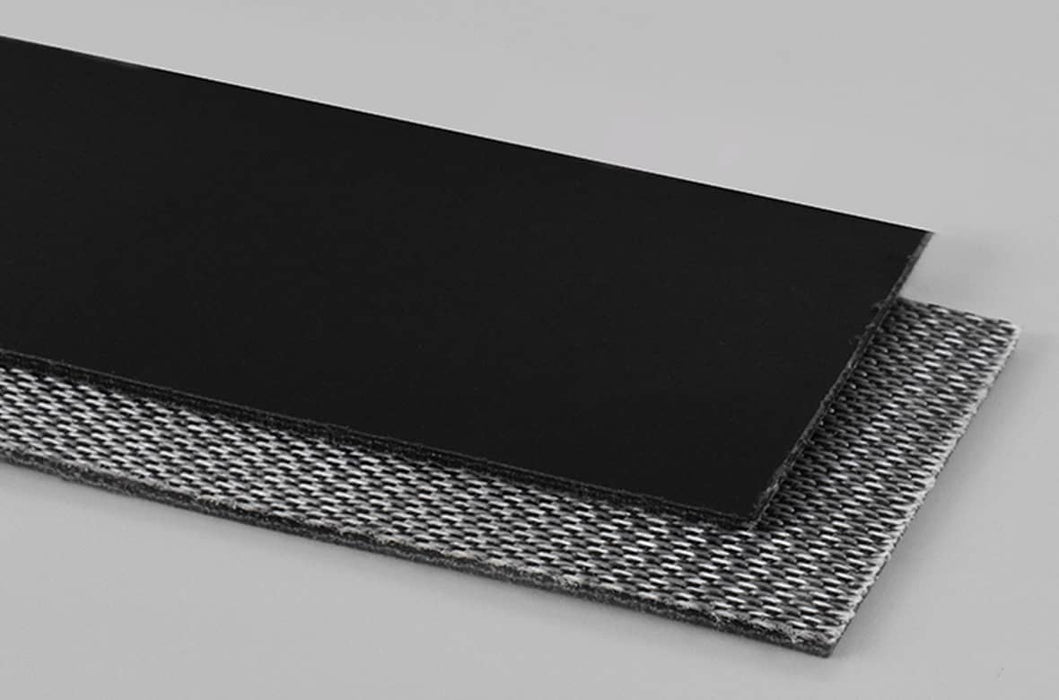

2 Ply Poly CR46 BLK PVC C x QW AS FR
2 Ply Poly CR46 BLK PVC C x QW AS FR
International designation: E8/2 U0/V5 Black QW AS FR
Details:
- Other: N/A
Construction:

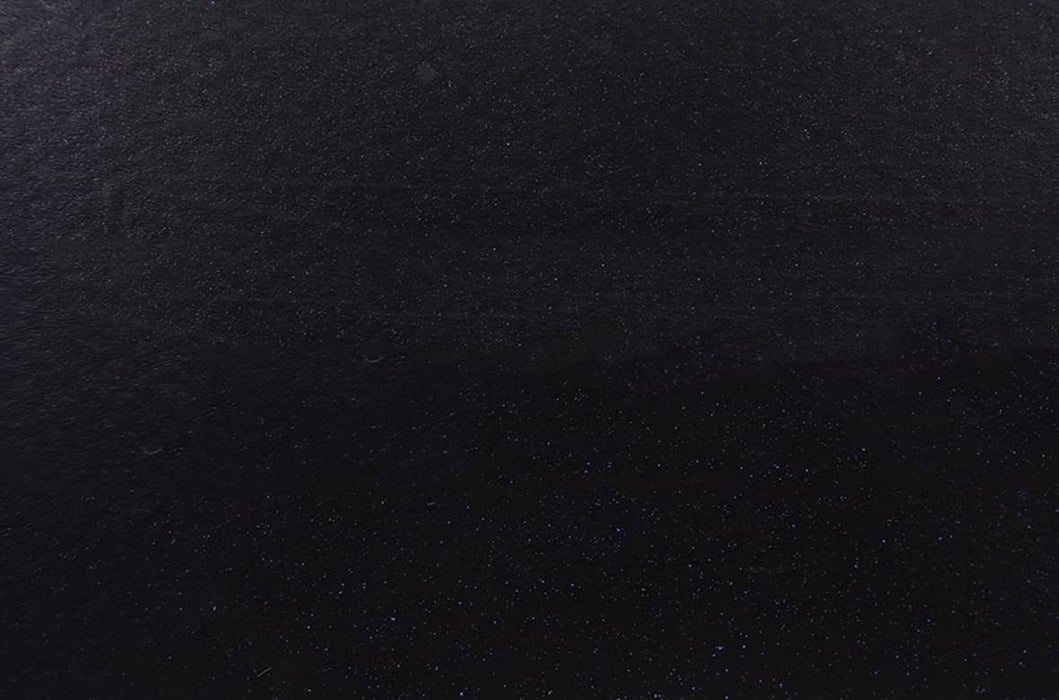

Black PVC (0.50 mm) 0.0197 in. — Matte 80
Polyester (0.00 mm) 0.0000 in. — PVC Impregnated
Number of Plies: 2
Anti-Static: Yes
Overall Gauge: (2.00 mm) 0.0787 in.
Unit Weight: 0.0409 lbs/PIW
Material Between Plies: PVC
Maximum Width: 79 in.
Temperature Range: High 180 °F / Low 15 °F
Pulley Diameter, Minimum:
- Normal Flex: (30.00 mm) 1.1811 in.
- Back Flex: (50.00 mm) 1.9685 in.
Belt Strength:
- Pull for 1% Elongation: (8 N/mm) 46 lbs/sq. in.
Splice Instructions:
- Foil Splice Process: Yes
- Splice Process: Finger
- Press Temperature: 330 °F
- Press Pressure: 25 lbs/sq. in.
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other:
- Cross Rigid: Yes
- Impression Top: No
- Oil Resistant: No
- Fire Resistant: Yes
- FDA Approved: No
Suggested Fasteners: N/A
