Reinforced Veethane
Reinforced Veethane extruded V-belting is a thermoplastic extrusion, reinforced with a polyester cord. It combines strength with flexibility. It has a coefficient of friction greater than rubber and maintains its characteristics over a wide temperature range.
Because Reinforced Veethane is made from a pure Polymer, it has a nonporous surface which will not attract lint or dust, absorb fats or greases, or harbor bacteria. The user can cut Reinforced Veethane to length and heat seal it, even on enclosed drives, so inventory problems and downtime are reduced.
Types of Reinforced Veethane:
FDA/USDA Standard Reinforced Veethane is produced in a variety of configurations and is primarily used for conveying applications. It is highly flexible and heat resistant. Hi-Cap Reinforced Veethane, extruded from Polyester, is primarily for power transmission applications. It is virtually impervious to common industrial contaminants that can weaken or destroy rubber v-belts. It is accepted by the FDA/USDA for use in the food industry.
Conveying Applications:

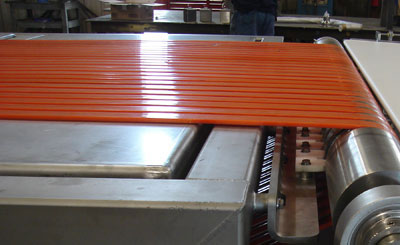

Reinforced Veethane has a high resistance to wear and can be used to convey abrasive material such as cinder blocks, grinding wheels and objects made of glass, metal or plastic. It is non-marking, so it is excellent for conveying paperboard packages and Pentagonal Reinforced Veethane is ideal for conveying glass or tile.
Power Transmission Applications:
Hi-Cap Reinforced Veethane can replace belts in many drive applications in easy to install matched sets.
View the USDA Equipment Acceptance Certificate
- Far tougher than rubber
- Chemical resistant
- FDA/USDA accepted
- Reinforced to minimize stretch
- Made in USA
- Tile Manufacturing
- Light Duty Drives
- Package Handling
- Food Industry
- FDA Compliance - Profile Extrusions
- Shingle Thermoplastic Product Catalog
- Shingle Thermoplastic Extrusions - A World of Possibilities
- Tile Industry Brochure
To view these documents, you need Adobe Acrobat Reader. You can download a free copy from the Adobe web site.
View the USDA Equipment Acceptance Certificate
| Composition | Color | Durometer | Temperature Range | Coefficient of Friction |
FDA/USDA | Joining | |
|---|---|---|---|---|---|---|---|
| °F | °C | ||||||
| PU | Yellow | 88 Shore A | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt weld |
| Hi-Cap (PE) | Ivory | 55 Shore D | -30 to 225 | -35 to 107 | 0.3-0.4 | Approved | Butt weld |
| Composition | Color | Durometer | Temperature Range | Coefficient of Friction |
FDA/USDA | Joining | |
|---|---|---|---|---|---|---|---|
| °F | °C | ||||||
| PU | Yellow | 88 Shore A | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt weld |
| Hi-Cap (PE) | Ivory | 55 Shore D | -30 to 225 | -35 to 107 | 0.3-0.4 | Approved | Butt weld |
| Profile | Urethane | Hi-Cap | ||||||
|---|---|---|---|---|---|---|---|---|
| Minimum Pulley Diameter | Pull for 1% | Minimum Pulley Diameter | Pull for 1% | |||||
| in | mm | lb / in | N / mm | in | mm | lb / in | N / mm | |
| 3L | 5.00 | 127 | 50 | 8.75 | 6.00 | 152 | 60 | 10.51 |
| A | 6.50 | 165 | 50 | 8.75 | 7.50 | 191 | 60 | 10.51 |
| Profile | Urethane | Hi-Cap | ||||||
|---|---|---|---|---|---|---|---|---|
| Minimum Pulley Diameter | Pull for 1% | Minimum Pulley Diameter | Pull for 1% | |||||
| in | mm | lb / in | N / mm | in | mm | lb / in | N / mm | |
| 3L | 5.00 | 127 | 50 | 8.75 | 6.00 | 152 | 60 | 10.51 |
| A | 6.50 | 165 | 50 | 8.75 | 7.50 | 191 | 60 | 10.51 |
