Rounthane

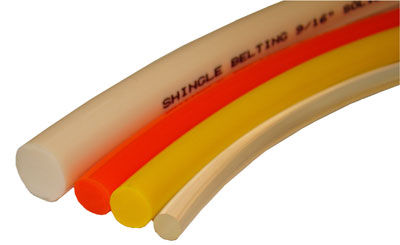

Rounthane is solid extruded round thermoplastic belting. This versatile product is simple to install and maintain in both conveying and power transmission applications.
Conveying Applications:

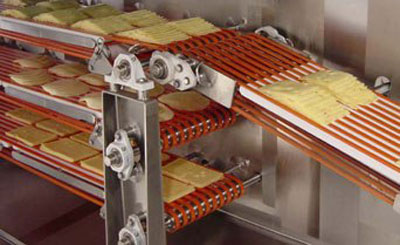

Use Rounthane to replace flat belts, rubber v-belts and rubber or leather round belts. It is ideal for complex systems involving multi-directional conveying. When conveying material like glass, tile, polished metal, etc., Rounthane offers the advantage of minimal surface contact. It is a favorite in the food processing industries since it will not harbor bacteria and is easy to clean. Multiple strands of Rounthane may be used to replace flat conveyor belts.
Power Transmission Applications:
Hi-Cap Rounthane offers the advantages of easy, quick installations and long life in light duty applications. Its friction characteristics are excellent. Do not use Hi-Cap Rounthane where clutching or slipping is required.
View the USDA Equipment Acceptance Certificate
- Easy to install
- Durable
- FDA/USDA accepted
- Easily made endless
- Made in USA
- Tile/Glass Conveying
- Mail Sorting Applications
- Can Conveying
- Laundry Applications
- Metal Detectors
- Food Industry
- FDA Compliance - Profile Extrusions
- Shingle Thermoplastic Product Catalog
- Shingle Thermoplastic Extrusions - A World of Possibilities
- Tile/Glass Conveying
To view these documents, you need Adobe Acrobat Reader. You can download a free copy from the Adobe web site.
View the USDA Equipment Acceptance Certificate
| Composition | Color | Durometer | Tension Range | Temperature Range | Coefficient of Friction | FDA/USDA | Joining | |
|---|---|---|---|---|---|---|---|---|
| °F | °C | |||||||
| PU | Yellow | 88 Shore A | 4-8% | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt Weld |
| PU | Clear | 88 Shore A | 4-8% | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt Weld |
| PU | Orange | 88 Shore A | 4-8% | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt Weld |
| PE | Ivory | 3/16"-3/8" 63 Shore D; 1/2" 55 Shore D | 4% | -30 to 225 | -35 to 107 | 0.3-0.4 | Approved | Heat |
| Composition | Color | Durometer | Tension Range | Temperature Range | Coefficient of Friction | FDA/USDA | Joining | |
|---|---|---|---|---|---|---|---|---|
| °F | °C | |||||||
| PU | Yellow | 88 Shore A | 4-8% | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt Weld |
| PU | Clear | 88 Shore A | 4-8% | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt Weld |
| PU | Orange | 88 Shore A | 4-8% | -25 to 150 | -31 to 65 | 0.4-0.6 | Approved | Butt Weld |
| PE | Ivory | 3/16"-3/8" 63 Shore D; 1/2" 55 Shore D | 4% | -30 to 225 | -35 to 107 | 0.3-0.4 | Approved | Heat |
| Diameter | Urethane | Hi-Cap | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimum Pulley Diameter | Working Load in lbs @ Prescribed Tension | Minimum Pulley Diameter | Working Load in lbs @ Prescribed Tension | ||||||||
| 4% | 6% | 8% | 4% | 6% | 8% | ||||||
| in | mm | in | mm | lb / kg | lb / kg | lb / kg | in | mm | lb / kg | lb / kg | lb / kg |
| 1/8 | 3.2 | 1.0 | 25.4 | 3.0/1.4 | 4.1/1.9 | 5.0/2.3 | 1.5 | 38.1 | 13.0/5.9 | N/A | N/A |
| 3/16 | 4.8 | 1.5 | 38.1 | 6.8/3.1 | 9.3/4.2 | 11.2/5.1 | 3.0 | 76.2 | 29/13.3 | N/A | N/A |
| 1/4 | 6.3 | 2.0 | 50.8 | 13.6/6.2 | 17.6/8.0 | 21.2/9.6 | 4.0 | 101.0 | 46/21.0 | N/A | N/A |
| 5/16 | 7.9 | 2.5 | 63.5 | 14.4/6.5 | 20.5/9.3 | 26/11.6 | 5.0 | 127.0 | 78/35.3 | N/A | N/A |
| 3/8 | 9.5 | 3.0 | 76.2 | 21.2/9.6 | 28/12.5 | 33/15.0 | 6.0 | 152.0 | 118/53.7 | N/A | N/A |
| 1/2 | 12.7 | 4.0 | 101.0 | 26/11.6 | 36/16.5 | 46/20.6 | 7.0 | 177.0 | 142/64.6 | N/A | N/A |
| 9/16 | 14.3 | 4.5 | 114.0 | 32/42.5 | 46/20.7 | 58/26.5 | - | - | - | - | - |
| 5/8 | 15.9 | 5.0 | 127.0 | 45/20.3 | 65/29.4 | 80/36.3 | - | - | - | - | - |
| 3/4 | 19.1 | 6.0 | 152.0 | 56/25.4 | 81/36.7 | 100/45.4 | - | - | - | - | - |
| Diameter | Urethane | Hi-Cap | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimum Pulley Diameter | Working Load in lbs @ Prescribed Tension | Minimum Pulley Diameter | Working Load in lbs @ Prescribed Tension | ||||||||
| 4% | 6% | 8% | 4% | 6% | 8% | ||||||
| in | mm | in | mm | lb / kg | lb / kg | lb / kg | in | mm | lb / kg | lb / kg | lb / kg |
| 1/8 | 3.2 | 1.0 | 25.4 | 3.0/1.4 | 4.1/1.9 | 5.0/2.3 | 1.5 | 38.1 | 13.0/5.9 | N/A | N/A |
| 3/16 | 4.8 | 1.5 | 38.1 | 6.8/3.1 | 9.3/4.2 | 11.2/5.1 | 3.0 | 76.2 | 29/13.3 | N/A | N/A |
| 1/4 | 6.3 | 2.0 | 50.8 | 13.6/6.2 | 17.6/8.0 | 21.2/9.6 | 4.0 | 101.0 | 46/21.0 | N/A | N/A |
| 5/16 | 7.9 | 2.5 | 63.5 | 14.4/6.5 | 20.5/9.3 | 26/11.6 | 5.0 | 127.0 | 78/35.3 | N/A | N/A |
| 3/8 | 9.5 | 3.0 | 76.2 | 21.2/9.6 | 28/12.5 | 33/15.0 | 6.0 | 152.0 | 118/53.7 | N/A | N/A |
| 1/2 | 12.7 | 4.0 | 101.0 | 26/11.6 | 36/16.5 | 46/20.6 | 7.0 | 177.0 | 142/64.6 | N/A | N/A |
| 9/16 | 14.3 | 4.5 | 114.0 | 32/42.5 | 46/20.7 | 58/26.5 | - | - | - | - | - |
| 5/8 | 15.9 | 5.0 | 127.0 | 45/20.3 | 65/29.4 | 80/36.3 | - | - | - | - | - |
| 3/4 | 19.1 | 6.0 | 152.0 | 56/25.4 | 81/36.7 | 100/45.4 | - | - | - | - | - |
