Ruffthane

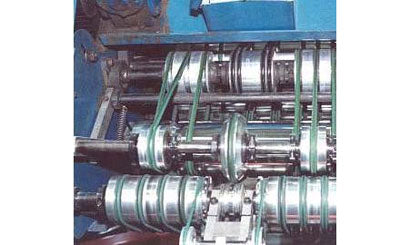

Ruffthane is a solid extruded round thermoplastic belting with a rough texture surface. This versatile product is simple to install and maintain in both conveying and power transmission applications.
Conveying Applications:
Use Ruffthane to replace flat belts, rubber v-belts and rubber or leather round belts. It is ideal for complex systems involving multi-directional conveying. When conveying rigid materials like glass, tile, polished metal, etc., Ruffthane offers the advantage of minimal surface contact due to its textured surface. When conveying pliable items such as bags of products Ruffthane's textured surface gives more grip.
- Easy to install
- Durable
- Excellent coefficient of friction
- Available in inches or millimeters
- Available in yellow or green
- 88 Shore A
- Made in USA
- Tile/Glass Conveying
- Mail Sorting Applications
- Can Conveying
- Laundry Applications
- Metal Detectors
- Newspaper Packaging
- Shingle Thermoplastic Product Catalog
- Shingle Thermoplastic Extrusions - A World of Possibilities
- Tile/Glass Industry Brochure
- Newspaper Industry Brochure
To view these documents, you need Adobe Acrobat Reader. You can download a free copy from the Adobe web site.
| Composition | Color | Durometer | Tension Range |
Temperature Range | Coefficient of Friction |
Joining | |
|---|---|---|---|---|---|---|---|
| °F | °C | ||||||
| PU | Green | 88 Shore A | 4-8% | -25 to 150 | -32 to 65 | 0.3-0.4 | Butt weld |
| PU | Yellow | 88 Shore A | 4-8% | -25 to 150 | -32 to 65 | 0.3-0.4 | Butt weld |
| Composition | Color | Durometer | Tension Range |
Temperature Range | Coefficient of Friction |
Joining | |
|---|---|---|---|---|---|---|---|
| °F | °C | ||||||
| PU | Green | 88 Shore A | 4-8% | -25 to 150 | -32 to 65 | 0.3-0.4 | Butt weld |
| PU | Yellow | 88 Shore A | 4-8% | -25 to 150 | -32 to 65 | 0.3-0.4 | Butt weld |
| Diameter | Minimum Pulley Diameter | Working Load in lbs. @ Prescribed Tension | ||||||
|---|---|---|---|---|---|---|---|---|
| 4% | 6% | 8% | ||||||
| in | mm | lb | kg | lb | kg | lb | kg | |
| 1/8” | 1.00 | 25.4 | 1.7 | 0.8 | 2.3 | 1.0 | 3.0 | 1.4 |
| 3/16” | 1.50 | 38.1 | 3.8 | 1.7 | 5.6 | 2.5 | 7.1 | 3.2 |
| 1/4” | 2.00 | 50.8 | 6.8 | 3.1 | 10.0 | 4.5 | 12.8 | 5.8 |
| 5/16” | 2.50 | 63.5 | 10.8 | 4.9 | 15.6 | 7.1 | 19.4 | 8.8 |
| 3/8” | 3.00 | 76.2 | 14.4 | 6.5 | 20.5 | 9.3 | 25.6 | 11.6 |
| 1/2” | 4.00 | 101.6 | 25.6 | 11.6 | 36.4 | 16.5 | 45.5 | 20.6 |
| 9/16” | 4.50 | 114.3 | 32.0 | 14.5 | 45.6 | 20.7 | 58.4 | 26.5 |
| 5/8” | 5.00 | 127.0 | 44.8 | 20.3 | 64.8 | 29.4 | 80.0 | 36.3 |
| 3/4" | 6.00 | 152.4 | 56.0 | 25.4 | 81.0 | 36.7 | 100.0 | 45.4 |
| 2mm | 0.75 | 19.1 | 1.0 | 0.5 | 1.4 | 0.6 | 1.7 | 0.8 |
| 3mm | 1.00 | 25.4 | 1.7 | 0.8 | 2.3 | 1.0 | 3.0 | 1.4 |
| 4mm | 1.25 | 31.8 | 2.8 | 1.3 | 4.0 | 1.8 | 5.5 | 2.5 |
| 5mm | 1.50 | 38.1 | 3.9 | 1.8 | 5.6 | 2.5 | 7.7 | 3.5 |
| 6mm | 2.00 | 50.8 | 6.0 | 2.7 | 8.5 | 3.9 | 10.5 | 4.8 |
| 7mm | 2.25 | 57.2 | 8.1 | 3.7 | 11.6 | 5.3 | 14.5 | 6.6 |
| 8mm | 2.50 | 63.5 | 10.8 | 4.9 | 15.6 | 7.1 | 19.4 | 8.8 |
| 10mm | 3.00 | 76.2 | 16.1 | 7.3 | 22.8 | 10.3 | 28.7 | 13.0 |
| 12mm | 3.75 | 95.3 | 23.1 | 10.5 | 32.9 | 14.9 | 41.0 | 18.6 |
| 15mm | 4.75 | 120.7 | 37.7 | 17.1 | 54.2 | 24.6 | 68.0 | 30.8 |
| Diameter | Minimum Pulley Diameter | Working Load in lbs. @ Prescribed Tension | ||||||
|---|---|---|---|---|---|---|---|---|
| 4% | 6% | 8% | ||||||
| in | mm | lb | kg | lb | kg | lb | kg | |
| 1/8” | 1.00 | 25.4 | 1.7 | 0.8 | 2.3 | 1.0 | 3.0 | 1.4 |
| 3/16” | 1.50 | 38.1 | 3.8 | 1.7 | 5.6 | 2.5 | 7.1 | 3.2 |
| 1/4” | 2.00 | 50.8 | 6.8 | 3.1 | 10.0 | 4.5 | 12.8 | 5.8 |
| 5/16” | 2.50 | 63.5 | 10.8 | 4.9 | 15.6 | 7.1 | 19.4 | 8.8 |
| 3/8” | 3.00 | 76.2 | 14.4 | 6.5 | 20.5 | 9.3 | 25.6 | 11.6 |
| 1/2” | 4.00 | 101.6 | 25.6 | 11.6 | 36.4 | 16.5 | 45.5 | 20.6 |
| 9/16” | 4.50 | 114.3 | 32.0 | 14.5 | 45.6 | 20.7 | 58.4 | 26.5 |
| 5/8” | 5.00 | 127.0 | 44.8 | 20.3 | 64.8 | 29.4 | 80.0 | 36.3 |
| 3/4" | 6.00 | 152.4 | 56.0 | 25.4 | 81.0 | 36.7 | 100.0 | 45.4 |
| 2mm | 0.75 | 19.1 | 1.0 | 0.5 | 1.4 | 0.6 | 1.7 | 0.8 |
| 3mm | 1.00 | 25.4 | 1.7 | 0.8 | 2.3 | 1.0 | 3.0 | 1.4 |
| 4mm | 1.25 | 31.8 | 2.8 | 1.3 | 4.0 | 1.8 | 5.5 | 2.5 |
| 5mm | 1.50 | 38.1 | 3.9 | 1.8 | 5.6 | 2.5 | 7.7 | 3.5 |
| 6mm | 2.00 | 50.8 | 6.0 | 2.7 | 8.5 | 3.9 | 10.5 | 4.8 |
| 7mm | 2.25 | 57.2 | 8.1 | 3.7 | 11.6 | 5.3 | 14.5 | 6.6 |
| 8mm | 2.50 | 63.5 | 10.8 | 4.9 | 15.6 | 7.1 | 19.4 | 8.8 |
| 10mm | 3.00 | 76.2 | 16.1 | 7.3 | 22.8 | 10.3 | 28.7 | 13.0 |
| 12mm | 3.75 | 95.3 | 23.1 | 10.5 | 32.9 | 14.9 | 41.0 | 18.6 |
| 15mm | 4.75 | 120.7 | 37.7 | 17.1 | 54.2 | 24.6 | 68.0 | 30.8 |
